Selective Soldering vs Manual Soldering: Which One Is Better?

Densely populated, mixed-technology boards combining surface-mount devices and through-hole components make traditional processing difficult. Engineers cannot rely on broad-stroke heating methods without risking damage to sensitive, miniaturized parts. Production managers face a strict bottleneck on the factory floor. You must balance high throughput demands and strict thermal stress limits while maintaining absolute joint consistency. Facilities often struggle against the natural variance, human error, and scalability limits inherent to manual operators. When production scales, relying solely on human dexterity introduces unacceptable risk into high-reliability product lines. To resolve this bottleneck, engineering teams must objectively evaluate their assembly processes. You need to decide whether to continue relying on skilled manual operators or transition to automated systems. This decision relies on verifiable metrics like defect rates, labor availability, and long-term operational efficiency to keep the assembly line moving without sacrificing quality.

• Manual soldering remains a viable, low-capex solution for prototyping, low-volume runs, and specialized rework, but introduces high variance in joint quality and relies heavily on skilled labor availability.

• Selective soldering equipment delivers programmable, repeatable precision, drastically reducing thermal shock on adjacent surface-mount components during PCB assembly.

• The transition from manual to automated processing requires significant upfront capital but yields lower operational costs at scale through reduced rework, lower consumable waste, and faster cycle times.

• Contract Manufacturers (CMs) and high-mix facilities benefit uniquely from selective soldering due to its programmable flexibility across diverse client board layouts.

• The decision ultimately hinges on a facility’s production volume thresholds, IPC compliance requirements, and the complexity of the mixed-technology boards being processed.

Defining the Success Criteria in Modern Electronics Manufacturing

Thermal Management and Component Safety

Heat destroys densely packed circuit boards if applied incorrectly. When processing mixed-technology assemblies, you must isolate heat application to specific through-hole joints. Applying excess thermal energy risks reflowing adjacent SMD components or damaging heat-sensitive parts like plastic connectors, relays, and electrolytic capacitors. Modern electronics manufacturing demands precise thermal management. Operators and machines must deliver enough heat to achieve proper wetting and barrel fill without exceeding the thermal limits of the surrounding FR4 substrate. If the heat spreads too far, you risk delamination or lifted pads. We measure success by the ability to localize the thermal footprint.

The Mixed-Technology Dilemma

Traditional wave soldering fails when dealing with complex, double-sided boards. A standard wave system drags the entire lower surface of the board across a molten solder bath. If you have SMDs populated on the bottom side, they will be submerged and destroyed unless protected by custom-milled pallets. Pallets add massive tooling costs and slow down changeovers. This limitation forces facilities into a corner. You must choose between slow manual intervention or investing in selective automation to handle through-hole components without disturbing the bottom-side SMDs. The physical layout of modern boards simply does not allow for mass-wave processing anymore.

Throughput and Cycle Time Requirements

Establishing baseline metrics for acceptable production speeds identifies line bottlenecks. Manual THT processing frequently becomes the slowest stage in an otherwise automated surface-mount line. While pick-and-place machines position tens of thousands of components per hour, a human operator might only complete a few hundred joints in the same timeframe. Evaluating your cycle time requirements helps pinpoint exactly where manual processing chokes overall factory throughput.

To accurately measure throughput bottlenecks, track these specific metrics:

1. The exact dwell time required per joint based on the thermal mass of the component lead.

2. The transfer time between the surface-mount line and the manual soldering stations.

3. The time spent on visual inspection and subsequent rework for cold joints or bridges.

4. The frequency of operator fatigue leading to a drop in units processed per hour.

Quality Assurance and IPC Compliance

Meeting stringent industry standards like IPC-A-610 Class 2 and Class 3 requires absolute consistency. Inspectors look for specific criteria: exact solder volume, optimal barrel fill, and repeatable fillet formation. Achieving this level of quality requires a highly controlled process. Variance in flux application, pre-heating, or dwell time directly impacts the final joint structure.

You cannot fake Class 3 compliance. The solder must flow up through the plated through-hole and wet the top pad. This requires precise pre-heating to activate the flux and sufficient thermal energy from the solder source to draw the alloy upward via capillary action.

Manual Soldering: Capabilities, Limitations, and Best Use Cases

The Role of the Human Operator in PCB Assembly

Human technicians bring unmatched physical flexibility to the assembly line. An experienced operator instantly adapts to unique, non-standard components or complex physical geometries. If a component lead is slightly bent or a connector requires a specific insertion angle, a human hand adjusts on the fly. This adaptability makes manual soldering highly effective for unpredictable tasks where programming a machine takes longer than simply doing the work. Operators can visually assess the wetting angle in real-time and adjust their iron angle to compensate for oxidized leads or heavy ground planes.

Hidden Costs: Rework, Inconsistency, and Labor Dependency

Relying on human labor introduces significant hidden expenses. Human error happens regardless of skill level. Varying dwell times with the soldering iron, inconsistent manual flux application, and physical fatigue all lead to joint variance. This variance inevitably results in rework. Rework slows down production and degrades the PCB substrate through repeated thermal cycles. Every time you touch a pad with an iron, you risk dissolving the copper plating. Furthermore, facilities face the ongoing operational burden of recruiting, training, and retaining certified technicians in a highly competitive labor market.

The Obsolescence Risk in High-Reliability Contexts

For aerospace, medical, and automotive applications, operator-dependent results introduce unacceptable risk. These industries require documented, repeatable processes that guarantee joint integrity under extreme vibration or thermal shock. Manual processing is increasingly viewed as an outdated primary method for these high-reliability boards. The inability to digitally log and verify the exact temperature and dwell time of every single joint pushes manufacturers toward automated solutions. You cannot pull a data log from a hand iron to prove to an auditor that a specific joint received exactly three seconds of heat at 350 degrees Celsius.

When Manual Soldering Still Makes Sense

Despite its limitations at scale, manual intervention remains optimal in specific scenarios.

• Rapid prototyping heavily relies on manual assembly because board designs change daily.

• Extremely low-volume custom builds do not justify the programming time required for automation.

• Post-wave touch-ups and specialized rework will always require the nuanced touch of a skilled technician.

• Installing heat-sensitive components that cannot survive even the localized heat of a mini-wave nozzle.

In these environments, the low capital expenditure of hand tools outweighs the benefits of automation.

Selective Soldering: Precision Automation for Complex Boards

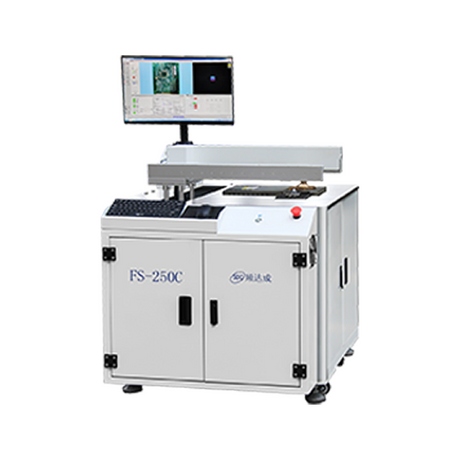

How a Selective Soldering Machine Operates

A selective soldering machine automates the through-hole process using three distinct stages. First, a drop-jet fluxer applies flux precisely to the target pins, avoiding the surrounding board area. Second, infrared or convection pre-heaters elevate the board temperature to activate the flux and prevent thermal shock. Finally, a dynamic mini-wave nozzle, often made of titanium or cast iron, moves beneath the board. Liquid solder pumps through this nozzle, creating a small, controlled fountain that solders individual joints or drags across connector rows. The board remains stationary while the gantry moves the fluxer and solder pot, or the board moves over stationary modules depending on the machine architecture.

Unmatched Joint-Level Flexibility

The primary advantage of automated selective systems is exact adjustment capability. You can program a different soldering time, temperature, and pump speed for each individual joint on the board. A heavy ground plane pin requires a longer dwell time and higher thermal mass to achieve proper barrel fill. A delicate signal pin requires a fast, low-temperature touch. The machine executes these distinct parameters flawlessly across the same board without operator intervention.

Advantages for Contract Manufacturers (CMs)

Contract manufacturers operate in high-mix, low-to-medium volume environments. You must transition between completely different client board layouts multiple times a day. Selective soldering provides the necessary adaptability to build around diverse client specifications. Instead of milling new wave solder pallets for every new product, engineers simply load a new digital program. This flexibility drastically reduces setup times and allows CMs to take on complex, double-sided boards profitably. You can switch from a heavy industrial power supply board to a delicate medical device board in the time it takes to load a file and swap a nozzle.

Material Efficiency and Waste Reduction

Automated selective systems minimize consumable waste. Traditional wave machines expose a massive surface area of molten solder to oxygen, generating heavy dross that must be skimmed and discarded. Selective machines use a tiny solder pot with a nitrogen shroud, virtually eliminating dross formation. Furthermore, the drop-jet fluxer applies micro-drops only where needed, drastically reducing flux consumption and eliminating the need for aggressive post-solder cleaning processes. You stop paying to wash away excess flux because the machine only applies it to the exact barrel location.

Head-to-Head Evaluation: Selective vs. Manual Approaches

Precision, Repeatability, and Defect Rates

When comparing statistical variance, machine-controlled repeatability drastically outperforms human ability. A manual operator might hold an iron on a joint for three seconds in the morning and five seconds in the afternoon. This variance causes inconsistent wetting and potential thermal damage. Automated selective soldering systems move the nozzle to the exact X-Y-Z coordinates every time, maintaining precise contact times and temperatures. This strict process control significantly reduces human error and drives defect rates down to near zero. You eliminate the variables of hand tremors, distraction, and inconsistent pressure.

Scalability and Production Volume Thresholds

Every facility reaches an inflection point where the labor costs and cycle times of manual processing exceed the operational costs of automated equipment. If your production demands require adding a second or third shift of manual operators just to keep up with the surface-mount line, you have crossed that threshold. Automated equipment scales effortlessly. A single machine outputs the equivalent work of several skilled technicians, maintaining the same cycle time regardless of shift changes or operator fatigue. You can run the machine lights-out or with minimal supervision during off-shifts to clear backlogs.

Long-Term Cost Efficiency vs. Upfront Capital Expenditure

Purchasing automated equipment requires a substantial initial investment. However, evaluating this solely on the sticker price ignores the long-term financial reality. You must weigh the high initial purchase price against the ongoing savings. Automated systems drastically reduce scrap rates, eliminate the need for expensive wave pallets, cut consumable costs, and allow you to reallocate skilled manual labor to more complex rework or inspection tasks. Over time, the automated approach yields a highly favorable return on investment. The reduction in solder bar purchases alone, due to the lack of dross generation, pays for the nitrogen supply and routine maintenance.

Implementation Realities and Adoption Risks

Integrating Selective Soldering Equipment into Existing Lines

Adding new machinery requires careful facility planning. You must assess footprint requirements and decide between inline or offline configurations. Inline systems integrate directly via conveyors with your existing PCB assembly line, maximizing throughput but requiring strict cycle-time synchronization. Offline batch systems offer more flexibility for high-mix environments but require manual loading and unloading. Installation causes temporary workflow disruptions, requiring strategic scheduling to minimize downtime. You also need to route exhaust ducting and compressed air lines to the installation site before the machine arrives.

Operator Training and Programming Requirements

Transitioning to automated systems shifts the required factory floor skill set. You no longer need manual dexterity; you need CNC-style programming and machine operation skills. Technicians must learn to import CAD or Gerber data, define flux zones, set pump RPMs, and map nozzle paths. This requires comprehensive training. Operators must understand the thermal dynamics of the board to program the machine effectively, bridging the gap between software operation and metallurgical science. They need to know why a thermal relief pad solders differently than a solid copper pour so they can adjust the machine parameters accordingly.

Maintenance, Nitrogen Supply, and Consumable Management

Automated systems introduce new operational realities. To achieve optimal joint quality and prevent nozzle oxidation, these machines require a constant, high-purity nitrogen supply. You must factor in the cost of nitrogen generation or bulk liquid delivery. Additionally, maintenance routines change.

1. Operators must perform daily nozzle cleaning to remove baked-on flux residue.

2. Technicians must monitor solder pot levels and replenish alloy to maintain consistent wave heights.

3. Maintenance staff must calibrate the drop-jet fluxer weekly to ensure targeting accuracy.

4. Filters in the exhaust system require monthly replacement to prevent flux buildup in the ductwork.

Neglecting these maintenance tasks immediately degrades joint quality and leads to machine downtime.

Making the Decision: A Framework for Production Managers

Assessing Current Defect and Rework Metrics

Before purchasing equipment, audit your existing manual processes to quantify the true cost of poor quality. Track how many boards fail initial inspection due to THT defects like cold joints, insufficient fill, or solder bridges. Calculate the exact labor hours spent on rework and the material cost of scrapped boards. This data provides a baseline to measure the potential impact of an automated system. If you do not know your current defect rate, you cannot accurately project your future savings.

Calculating ROI Based on Labor vs. Machine Output

Develop a structured approach to estimate your payback period. Factor in the labor reallocation—moving operators from primary assembly to specialized tasks. Calculate the value of throughput increases by determining how many additional boards you can ship per week. Subtract the projected reductions in defect-related scrap and consumable waste. Comparing these operational savings against the depreciation cost of the selective soldering equipment reveals your true ROI timeline. Do not forget to include the elimination of wave pallet design and fabrication costs in your calculations.

Future-Proofing Your Assembly Line

Your purchasing decision must account for future product roadmaps. Look at the designs your engineering team plans to release over the next three to five years. Miniaturization trends will continue, making manual access to THT pins even more difficult. Anticipated volume scaling will strain manual labor pools. Investing in programmable automation ensures your facility possesses the capability to handle tomorrow's complex, high-density mixed-technology boards without requiring constant line redesigns. You buy the machine for the boards you are building today, but you justify the investment based on the boards you will build tomorrow.

Conclusion

To transition your facility toward automated processing and eliminate manual bottlenecks, execute the following steps:

• Conduct a formal time-study on your current manual THT processes to identify exact cycle times and labor hours per board.

• Audit your defect logs for the past six months to quantify the financial impact of manual soldering errors and rework.

• Request a physical demonstration or cycle-time estimate from an equipment manufacturer using your most complex board files.

• Evaluate your facility's infrastructure to ensure adequate floor space, exhaust routing, and nitrogen supply for automated equipment.

FAQ

Q: What is the main difference between selective soldering and manual soldering?

A: Manual soldering relies on a human operator using a hand-held iron, offering high physical adaptability but introducing variance and human error. Selective soldering uses a programmable, automated machine with a dynamic mini-wave nozzle to solder specific joints, ensuring exact repeatability, precise thermal control, and consistent quality across high volumes.

Q: At what production volume does a selective soldering machine become cost-effective?

A: Cost-effectiveness depends on board complexity and labor rates rather than a strict volume number. When a facility requires multiple full-time operators for through-hole assembly, or when rework costs and scrap rates from manual errors begin impacting profit margins, the operational savings of an automated machine quickly justify the investment.

Q: Why is selective soldering often preferred over wave soldering for complex PCB assembly?

A: Wave soldering drags the entire bottom of the board through molten solder, which destroys bottom-side surface-mount components unless expensive protective pallets are used. Selective soldering applies flux and solder only to specific through-hole pins, completely avoiding and protecting adjacent SMDs, making it ideal for double-sided, mixed-technology boards.

Q: Can selective soldering replace wave soldering entirely in electronics manufacturing?

A: Not entirely. While selective systems are perfect for mixed-technology and double-sided boards, traditional wave soldering remains faster and more efficient for legacy boards that are predominantly through-hole or have no bottom-side SMDs. High-volume, simple assemblies still benefit from the mass-processing speed of a wave machine.

Q: Does selective soldering equipment require a nitrogen environment to operate?

A: Yes, a nitrogen supply is highly recommended and standard practice. Nitrogen shrouds the molten solder nozzle, displacing oxygen. This prevents rapid oxidation, drastically reduces solder dross formation, improves the wetting characteristics of the solder, and ensures shiny, high-quality joints with minimal maintenance.

Q: How long does it take to program a selective soldering machine for a new PCB layout?

A: Modern systems use offline programming software that imports CAD or Gerber files. An experienced technician can create, simulate, and finalize a program for a moderately complex board in 15 to 30 minutes. This fast setup makes the equipment highly efficient for contract manufacturers handling multiple product changeovers daily.

Q: What are the most common defects in manual soldering compared to automated selective soldering?

A: Manual soldering frequently suffers from cold joints, insufficient barrel fill, thermal damage to pads, and inconsistent solder volume due to varying operator dwell times. Automated selective systems virtually eliminate these issues, though they can occasionally experience bridging if nozzle paths or flux volumes are incorrectly defined in the software.
