How Selective Wave Soldering Machines Improve PCB Assembly Quality

Small soldering errors can ruin a good PCB. They can cause weak joints, shorts, rework, or field failure. A Selective Wave Soldering Machine improves PCB assembly quality by soldering only required through-hole points. It controls flux, heat, solder flow, nozzle motion, and dwell time. In this article, you will learn how it reduces defects and supports stable production.

Key Takeaways

● A Selective Wave Soldering Machine improves PCB quality by applying solder only to selected through-hole joints.

● It helps protect SMT parts, dense layouts, and double-sided PCBs from excess heat.

● Programmed solder paths, dwell time, and nozzle movement improve repeatability.

● Controlled fluxing and preheating reduce poor wetting, bridging, and cold joints.

● Offline systems suit prototypes, proofing, and small-batch production.

● Online systems support automated, stable, and higher-volume PCB assembly.

● Quality gains should be measured through defect rates, first-pass yield, and rework reduction.

● Machine maintenance is part of soldering quality, not only equipment care.

The Main Ways a Selective Wave Soldering Machine Improves PCB Assembly Quality

A Selective Wave Soldering Machine improves PCB assembly quality by turning soldering into a controlled, repeatable process. Instead of exposing the full board to molten solder, it works only on selected through-hole pins. This is important for modern PCB assemblies, where SMT parts, DIP connectors, relays, terminals, and power components often sit on the same board.

It solders only the targeted through-hole joints

Selective soldering limits heat and solder contact to the required areas. This reduces risk to nearby SMT parts, coatings, connectors, and plastic housings. It also helps when the board has bottom-side components or tall parts near the soldering area.

This targeted method is especially useful for mixed-technology PCBs. SMT parts can be placed and reflowed first. Then the machine solders the remaining through-hole points without disturbing finished areas.

It improves solder joint consistency through programmed control

Manual soldering can vary from one operator to another. Even skilled workers may apply different heat time or solder volume. A selective system uses programmed paths and controlled parameters. This creates more stable results across shifts, batches, and product versions.

The machine can control nozzle position, solder contact time, solder temperature, and movement speed. When these settings are developed well, each board follows the same soldering logic.

It reduces common soldering defects

Common PCB soldering defects include bridging, poor wetting, cold joints, icicles, excess solder, and insufficient barrel fill. Many of these problems come from unstable heat, poor solder flow, or uncontrolled contact time.

Selective soldering reduces these risks because the process is more localized. The solder wave reaches the joint area in a planned way. The board receives the needed heat, instead of excessive heat across the full surface.

It protects sensitive SMT components

Modern assemblies often use compact packages, fine-pitch parts, and heat-sensitive components. Full-board solder exposure may create stress around these areas. Selective soldering helps protect them because only the required through-hole pins are processed.

This matters in control boards, communication equipment, consumer electronics, automotive electronics, and appliance boards. These products often need strong through-hole joints, but they cannot accept random heat exposure.

It improves thermal control for complex PCBs

Lead-free soldering needs higher process temperatures than many older soldering methods. Multilayer boards and heavy copper areas also absorb heat unevenly. If the board is not heated correctly, solder may not wet the pin and pad well.

Preheating helps stabilize the board before soldering. It activates flux, reduces thermal shock, and helps solder flow through the hole. Better thermal balance leads to stronger, cleaner joints.

It supports stable quality across different production scales

Offline systems are useful for prototypes, proofing, small batches, and frequent product changes. They help engineers test recipes and adjust soldering points quickly. Online systems are better for automated flow and higher production volume.

In both cases, the quality goal is the same. The process should produce stable joints, reduce rework, and protect the board.

It enables point-by-point optimization

Complex PCBs often need different soldering conditions in different areas. A large connector may need more heat. A small pin near sensitive parts may need less dwell time. Point-by-point control lets the process match the real board design.

This helps improve first-pass yield. It also reduces manual correction after soldering.

Tip：Before production, build soldering recipes from real PCB samples, not only CAD data.

Why Traditional Soldering Methods Can Limit PCB Assembly Quality

Traditional soldering methods still work in many cases. However, they can limit quality when board designs become dense, mixed, or thermally sensitive. The issue is not only soldering speed. The issue is process control.

Full-board wave soldering can expose too many areas to heat

Traditional wave soldering sends the PCB across a full solder wave. This works well for simpler through-hole boards. But it can be risky for mixed SMT and through-hole assemblies.

Sensitive areas may need masking. Bottom-side parts may block solder access. Tall components may change flow behavior. These issues can increase defects and process complexity.

Manual soldering depends heavily on operator skill

Manual soldering gives flexibility, but it is hard to repeat. Operators must control solder wire, iron angle, heat time, and joint appearance. Fatigue and shift changes can affect quality.

For low-volume repair work, manual soldering may still be useful. For repeatable assembly, it can create hidden variation. This variation often appears as rework, inspection failure, or field returns.

Masking and fixtures add process complexity

When traditional wave soldering is used on mixed boards, masking or special fixtures may be needed. These tools add handling steps. They also create risk if they are damaged, misaligned, or poorly designed.

Selective soldering reduces dependence on broad masking. It reaches selected points through programmed movement and nozzle control.

How Process Control Turns Selective Soldering Into a Quality-Driven Process

A Selective Wave Soldering Machine is not only an automation tool. Its real value comes from controlled process stages. Fluxing, preheating, soldering, and cooling must work together.

Accurate flux application improves wetting

Flux removes surface oxides and prepares the metal for soldering. Too little flux may cause poor wetting. Too much flux can leave residue and contamination.

Selective systems apply flux only where needed. This helps keep the process cleaner. It also supports more predictable solder joint formation.

Controlled preheating stabilizes the board

Preheating raises the PCB temperature before solder contact. This helps flux work better and reduces sudden thermal shock. It also improves solder flow through plated holes.

Balanced preheating is important for lead-free soldering, multilayer PCBs, and components with high thermal mass. Without it, some joints may look acceptable but remain weak inside.

Nozzle movement control improves solder contact

The nozzle controls how molten solder reaches the joint. Its path, height, speed, and contact time affect solder quality. Poor movement can cause bridging or incomplete soldering.

Programmed nozzle control creates more uniform results. It helps the solder contact the pin and pad correctly. It also helps avoid nearby components.

Temperature and dwell time control support repeatable joints

Every solder joint needs enough heat to form a proper bond. Too little heat causes poor wetting. Too much heat can damage pads, coatings, or components.

A controlled process keeps soldering inside a stable window. This is one reason selective soldering can improve repeatability.

Note：Good process control does not replace inspection; it makes inspection results more predictable.

Quality Benefits for Mixed SMT and Through-Hole PCB Assemblies

Mixed SMT and through-hole boards are common in modern electronics. SMT supports compact design. Through-hole parts provide strength for connectors, terminals, relays, transformers, and power components.

Selective soldering fits modern hybrid PCB designs

A hybrid PCB may pass through SMT printing, placement, and reflow first. After that, through-hole parts still need soldering. Selective soldering fits this workflow well.

It lets the board keep its SMT advantages while adding durable through-hole joints. This is useful for products needing compact size and strong mechanical performance.

It reduces risk around high-density layouts

Dense PCB layouts leave little space between solder points and nearby parts. Full-board methods may not offer enough control. Manual soldering may also be hard in tight spaces.

Selective soldering improves access because the process focuses on defined points. It can handle complex sequences and avoid unnecessary solder contact.

It improves reliability for mechanically stressed parts

Through-hole components are often used where strength matters. Examples include power connectors, terminal blocks, switches, and large inductive components. These parts may face vibration, insertion force, or repeated use.

A strong solder joint needs proper wetting and fill. Selective soldering helps deliver both when the recipe is correct.

How Selective Wave Soldering Improves First-Pass Yield and Reduces Rework

First-pass yield shows how many boards pass inspection without repair. It is one of the clearest signs of assembly quality. A stable soldering process should reduce touch-up work and improve yield.

Fewer solder defects mean fewer repairs

Rework costs more than labor time. It can also stress the PCB again. Each repair step may add heat, handling, and contamination risk.

Selective soldering reduces rework by controlling where and how solder is applied. Fewer bridges and weak joints mean fewer boards return to repair benches.

Stable recipes help during product changeovers

Many factories build different PCB models in the same line. This makes recipe management important. A machine that stores and repeats settings can support high-mix production.

For prototypes and NPI runs, recipe flexibility is also valuable. Engineers can adjust parameters before scaling production.

Automation reduces human variation

Automation does not remove the need for skilled technicians. It changes their role. Instead of hand-soldering each joint, they develop, monitor, and improve the process.

This shift improves quality because the machine repeats the approved recipe. Operators then focus on setup, inspection, and process control.

Matching Selective Wave Soldering Machine Type to PCB Quality Goals

Different production goals need different machine types. The best choice depends on PCB design, output target, floor space, changeover needs, and reliability requirements.

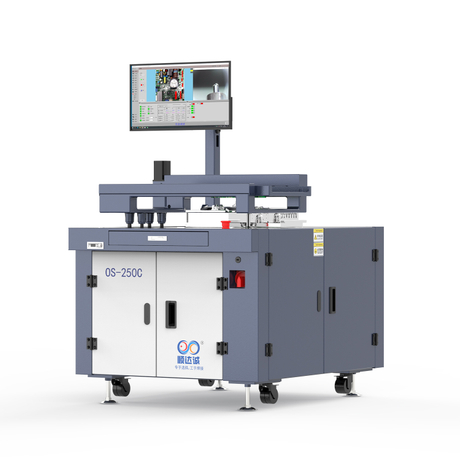

Offline systems for prototypes and small batches

Offline selective soldering systems fit proofing, engineering trials, and smaller production runs. They usually offer flexible programming and fast changeover. This helps teams refine soldering points before mass production.

They are also useful when products change often. A compact setup can support many board types without taking large factory space.

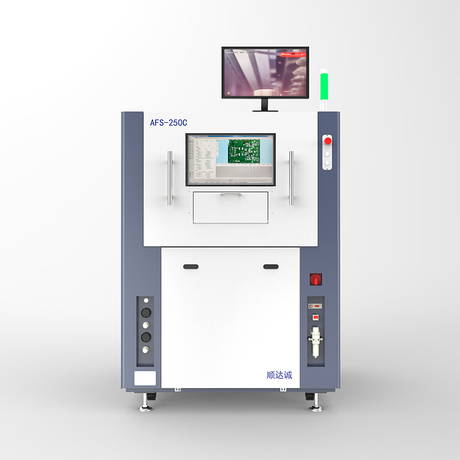

Online systems for automated production

Online systems connect better to automated production flow. Boards can move through fluxing, preheating, and soldering stages in sequence. This reduces manual handling and improves process stability.

For repeat production, this can improve both quality and efficiency. The machine becomes part of a controlled assembly line.

High-throughput systems for volume consistency

When production volume increases, speed must not damage quality. High-throughput systems support larger output through added stations, stronger automation, or parallel processing concepts.

The goal is not only more boards per hour. The goal is more good boards per hour.

Application-focused systems for demanding environments

Automotive electronics, industrial control boards, communication equipment, and appliance boards can have different needs. Some boards need strong thermal control. Others need compact solder access or high uptime.

Machine selection should match the board, not only the budget. A poor match can create avoidable defects.

Tip：Choose equipment after reviewing board size, thermal mass, component height, and expected product mix.

Practical Quality Checks When Using a Selective Wave Soldering Machine

A good machine still needs process discipline. Quality checks help confirm the recipe works in real production. They also detect drift before defects grow.

Validate solder fill, wetting, and joint shape

Check barrel fill, pin coverage, fillet shape, and solder smoothness. A shiny joint is not always enough. Critical products may need deeper inspection.

AOI can find visible issues. X-ray or cross-section analysis may be useful for hidden joints or reliability checks.

Monitor process parameters during production

Track solder temperature, flux amount, preheat profile, nozzle condition, dwell time, and conveyor stability. Small changes can affect solder quality.

Parameter logs help teams find root causes. They also support more consistent production decisions.

Use inspection results to refine recipes

Inspection should not only reject bad boards. It should guide process improvement. If one connector keeps showing insufficient fill, the recipe may need more heat or dwell time.

If bridging appears near tight pins, nozzle path or solder contact may need adjustment. Recipe refinement is part of quality engineering.

Maintain the machine to protect long-term quality

Nozzle cleaning, solder pot care, flux system checks, and calibration all affect soldering stability. Poor maintenance can create defects even when the original recipe was strong.

A maintenance schedule protects both equipment life and PCB quality.

How to Evaluate PCB Assembly Quality Improvements After Adoption

After adopting selective soldering, quality should be measured. Claims are useful, but production data gives better proof.

Compare defect rates before and after adoption

Track bridging, cold joints, poor wetting, insufficient solder, icicles, and touch-up rates. Compare the same board type when possible. This gives a fair view of improvement.

Measure first-pass yield and rework reduction

First-pass yield shows whether the process is stable. Rework reduction shows whether the machine is saving labor and protecting boards from extra heat.

These numbers help justify equipment decisions. They also reveal where process tuning is still needed.

Review reliability performance in final products

The true value of better soldering appears after shipment. Monitor connector failures, vibration issues, intermittent faults, and field returns.

Reliable soldering protects brand trust. It also reduces hidden costs after delivery.

Conclusion

A Selective Wave Soldering Machine improves PCB assembly quality through targeted soldering, controlled heat, precise fluxing, and repeatable recipes. Dongguan Sundarc Automation Technology Co., Ltd. provides selective soldering solutions for small-batch proofing, inline production, and demanding electronics applications. Its equipment supports stable solder joints, flexible process control, and dependable assembly value.

FAQS

Q: What does a Selective Wave Soldering Machine do?

A: A Selective Wave Soldering Machine solders selected through-hole joints on a PCB.

Q: Why does it improve PCB quality?

A: It controls heat, solder flow, flux, and dwell time.

Q: Is it better than manual soldering?

A: Yes, for repeatable production and lower operator variation.

Q: Does a Selective Wave Soldering Machine reduce cost?

A: A Selective Wave Soldering Machine can reduce rework and labor waste.

Q: What defects can it reduce?

A: It helps reduce bridging, cold joints, and poor wetting.

Q: How do I fix unstable solder results?

A: Check flux, preheat, nozzle condition, and solder temperature.
