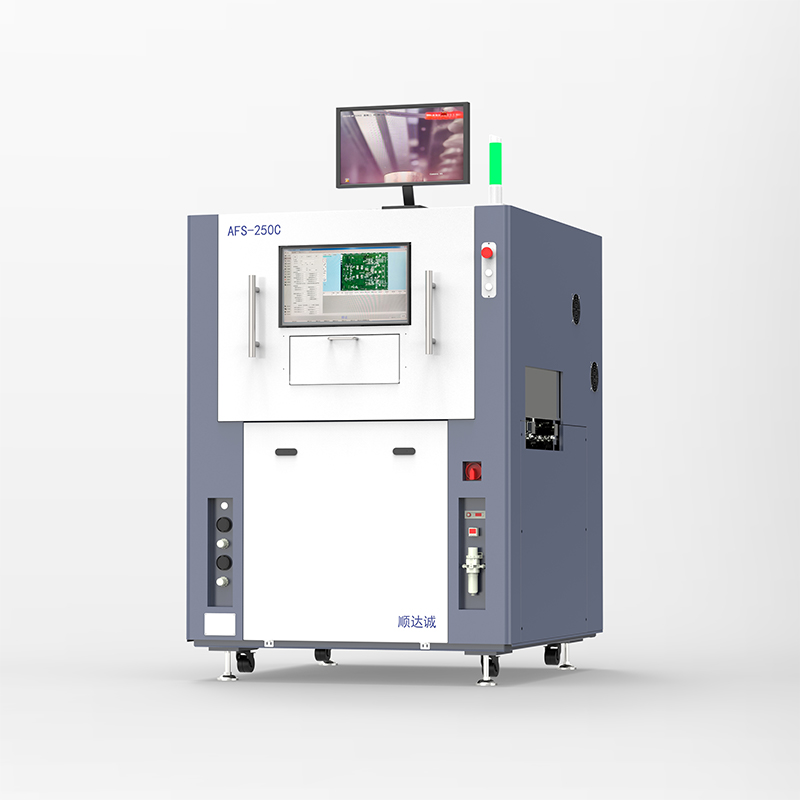

Compact Inline Selective Soldering Machine When Floor Space Is Limited

Electronic Manufacturing Services and OEM facilities often hit a hard physical boundary when expanding production lines. Floor space is a finite resource on the shop floor. Transitioning from manual hand soldering or offline batch processing to automated continuous flow creates a severe bottleneck. Traditional wave soldering systems demand massive square footage. They force engineers into costly facility modifications or complex line reconfigurations just to fit the equipment.

Engineering advancements now solve this spatial constraint directly. A compact inline selective soldering machine delivers high-mix, high-reliability throughput without requiring facility expansion. By utilizing modular designs, advanced micro-nozzle technology, and intelligent thermal management, these systems achieve excellent solder joint integrity. They match the cycle times of larger counterparts. Manufacturers can upgrade their automated through-hole soldering capabilities while maximizing the boards-per-hour output per square meter of available cleanroom space.

Key Takeaways

• Footprint vs. Throughput: Compact systems can match the cycle times of larger units for high-mix, low-to-medium volume assemblies by utilizing modular, multi-station processing.
• Integration Readiness: Modern small-footprint machines support full SMEMA and IPC-9852 (Hermes) protocols, allowing seamless integration into existing SMT lines.
• Precision and Quality: Miniaturization of the machine does not compromise solder joint integrity; closed-loop fiducial recognition and precise drop-jet fluxing remain standard.

The Floor Space Dilemma in PCB Assembly

Calculating the True Cost of Production Footprint

Square footage in cleanrooms carries a heavy financial burden. Every square meter dedicated to bulky equipment reduces the space available for revenue-generating assembly lines. When evaluating large soldering systems, you must account for hidden expenses. These include line disruptions, structural modifications, and the labor required to move adjacent equipment for installation clearance.

A critical metric in equipment evaluation is the zero-clearance wall placement factor. A machine's physical footprint differs from its actual service envelope. Large legacy systems require rear and side access for maintenance. This effectively doubles the floor space they consume. Front-access-only designs allow machines to sit directly against walls. This reclaims valuable aisle space. The baseline success criterion for footprint optimization is maximizing boards-per-hour (BPH) per square meter.

When to Transition to an Inline Selective Wave Soldering Machine

Operations relying on offline batch soldering eventually hit a tipping point. Continuous board flow becomes mandatory to keep up with upstream SMT placement. This transition reduces operator handling errors and decreases work-in-progress inventory. Integrating an inline selective wave soldering machine directly into the line eliminates manual board transfers. It standardizes the thermal profile applied to each assembly.

Board complexity dictates this transition. Heavy copper planes, tall components, and double-sided reflow requirements mandate precise automated through-hole soldering. Manual operators cannot consistently achieve the required barrel fill on thick multi-layer boards. Traditional high-volume wave soldering lines consume massive amounts of floor space and require custom pallets. Modern modular inline configurations target specific through-hole components. They reduce thermal stress on adjacent surface-mount devices while occupying a fraction of the physical space.

Core Capabilities of a Space-Saving Selective Soldering Machine

Fluxing, Preheating, and Soldering in a Small Footprint

Miniaturizing the soldering process requires highly efficient sub-systems. High-precision drop-jet fluxers apply flux only to the required solder joints. This targeted application minimizes overspray. It drastically reduces flux consumption and eliminates the need for extensive internal cleaning zones within the machine chassis.

Thermal management in a restricted space demands efficient energy transfer. Short-wave IR, quartz preheaters, and top-side convective preheating modules achieve required activation temperatures within shorter physical zones. These compact preheating arrays ensure the PCB reaches the optimal temperature gradient. They do not require the long preheat tunnels found in standard wave soldering machines.

The soldering module relies on micro-nozzle technology and electromagnetic pumps. These deliver stable solder wave dynamics in a condensed solder pot. To maximize output, dual-nozzle or dual-pot configurations mount on a single gantry. This allows the system to solder multiple joints simultaneously. It handles different alloys without expanding the physical width of the space-saving selective soldering machine.

Conveyor Systems and Line Integration

Transporting PCBs through a condensed machine requires specialized conveyor mechanisms. Edge-handling conveyors maintain minimal width while providing enough rigidity to prevent board warpage during the thermal cycle. Multi-stage lift-and-carry or drop-off conveyor designs allow the machine to handle raw boards and heavy fixtures in extremely tight configurations.

Seamless line integration relies on robust communication protocols. Traditional hardware handshakes like SMEMA remain standard. Advanced machine-to-machine protocols such as IPC-CFX and IPC-9852 Hermes are essential for modern smart factories. These protocols allow the soldering system to communicate board dimensions, recipe requirements, and line status with upstream and downstream equipment. They enable continuous flow without bulky mechanical buffering conveyors.

1. Verify SMEMA cable routing paths before positioning the machine.
2. Configure IPC-Hermes IP addresses to match the factory subnet.
3. Test the edge-handling conveyor width adjustment using the heaviest production board.
4. Calibrate the drop-off conveyor sensors to prevent board collisions.

Evaluating Compact Systems: Key Decision Criteria

Throughput vs. Cycle Time Trade-offs

Compact machines handle cycle times differently than large-scale systems. To compensate for shorter processing zones, they employ simultaneous processing. The system might flux one board in the entry zone while simultaneously soldering another board in the main chamber. This parallel processing offsets the limitations of sequential processing in a single small chamber.

Evaluating these systems requires calculating the footprint efficiency index. This metric determines realistic throughput based on the number of solder joints completed per board, divided by the square meters of floor space the machine occupies. This calculation provides a clear comparison of actual production capability relative to the physical space consumed.

Solder Pot Flexibility and Maintenance Access

Flexibility is critical in high-mix environments. Single versus dual nozzle configurations within compact frames determine the machine's ability to handle different nozzle sizes. They allow switching between leaded and RoHS lead-free alloys without extensive downtime. Dual pots within a single chassis offer the highest flexibility but demand meticulous internal engineering to prevent cross-contamination.

Maintenance access presents a significant engineering challenge in small footprint designs. Operators perform daily tasks such as dross removal, nozzle replacement, and pump cleaning. Systems designed with slide-out solder pots or quick-change mechanisms allow operators to perform these tasks within a small swing radius. Maintenance completes without moving adjacent SMT line equipment.

Quality Control and Traceability in Compact Designs

Restricted cabinet space does not excuse a lack of process control. High-end compact systems integrate closed-loop controls. These include fiducial alignment cameras, continuous wave height monitoring, and real-time flux flow verification. These sensors ensure absolute precision. They compensate for board warpage or positioning tolerances dynamically.

Traceability is equally important for automotive and medical electronics. Data logging capabilities capture exact parameters for every individual board. This includes flux volume, preheat temperature, solder contact time, and alloy temperature. This data transmits to the factory MES to maintain compliance with standards like IATF 16949 and ISO 13485.

Implementation Risks and Mitigation Strategies

Thermal Management and Exhaust Requirements

A primary risk with compact machines is internal heat buildup. Concentrating preheaters and molten solder pots into a small volume negatively affects adjacent electrical components, sensors, and precision gantry motors. Facilities must ensure proper exhaust extraction rates are met. Machine designs should incorporate thermal barriers, internal cooling baffles, and isolated electrical cabinets to protect sensitive components from thermal degradation.

Nitrogen Supply and Consumption Rates

Smaller, highly agitated solder pots require a consistent nitrogen supply. This prevents rapid dross formation and ensures optimal wave surface tension. Underestimating the required nitrogen purity and flow rate leads to poor solder joint quality and excessive maintenance. Evaluating machines with localized nitrogen shrouds that blanket only the immediate wave area significantly reduces overall gas consumption compared to flooding the entire soldering chamber.

Gantry Rigidity and Vibration Dampening

To reduce weight and footprint, smaller machine frames might lack the mass of legacy systems. This makes them susceptible to axis positioning errors under high-speed gantry acceleration. Precision is paramount when targeting through-hole pins with micro-nozzles. Mitigation involves selecting machines built with cast or heavily reinforced frames. Closed-loop encoder systems are mandatory to preserve positioning accuracy. They typically require tolerances of ±0.05mm over long continuous production runs.

Operator Training and Programming Complexity

Complex offline programming software severely delays New Product Introduction. If programming a new board takes hours, the efficiency gains of automated soldering vanish. Facilities should look for systems offering direct Gerber import, DXF compatibility, and drag-and-drop offline programming. An intuitive Human-Machine Interface reduces the learning curve. Operators create and optimize soldering recipes without halting current production.

Cost Factors and ROI Justification

Initial Capital Expenditure vs. Long-Term Yield

Justifying the investment requires comparing the upfront capital expenditure of a small footprint selective soldering machine against the immediate labor savings of replacing manual hand-soldering stations. Automated selective soldering drastically reduces defect rates. It minimizes rework and scrap costs associated with manual processes or traditional wave soldering.

Utility savings play a significant role in ROI calculations. Compact systems draw significantly lower kW power. They require a fraction of the solder bar inventory to fill the pot and consume less nitrogen. Reclaiming square footage allows facility managers to install extra SMT placement machines or expand final assembly operations. This directly increases overall factory revenue.

Preparing for a Selective Soldering Machine Quote

Acquiring an accurate system configuration requires providing specific technical details to the equipment vendor. Vague requests lead to improperly sized machines or inadequate thermal capabilities. To obtain a precise selective soldering machine quote, production engineers must compile a comprehensive list of requirements.

• Maximum and minimum PCB dimensions including length, width, and thickness.
• Top and bottom component clearance constraints defining the maximum height allowable.
• Total board weight including any necessary transport fixtures or pallets.
• Required cycle time or tact time to match the line beat rate.
• Specific alloy type such as SAC305 or SN100C and any flux chemistry limitations.
• Facility utility constraints including available power drops, compressed air capacity, and exhaust extraction volume.

Conclusion

1. Measure your exact available floor space, including the required front-access maintenance envelope, before reviewing equipment specifications.
2. Compile a comprehensive list of your heaviest, most complex PCB assemblies to test the machine's preheating and conveyor rigidity.
3. Request a live demonstration or video proof of the machine's offline programming software using your own Gerber files.
4. Calculate your facility's current nitrogen and power capacities to ensure they meet the requirements of the new compact system.

FAQ

Q: What is the minimum floor space required for a compact inline selective soldering machine?

A: Compact inline systems typically require under 1.5 to 2 meters in length. You must account for the actual service envelope. This includes front access clearance for maintenance and any necessary SMEMA conveyor extensions for upstream and downstream handshakes.

Q: Can a small footprint selective soldering machine handle heavy copper boards?

A: Yes. Success depends on the preheating configuration. Compact machines equipped with high-capacity bottom-side quartz heaters and top-side convective preheating modules achieve the required thermal penetration. This ensures proper barrel fill on high-thermal-mass PCBs.

Q: How does an inline selective wave soldering machine compare to traditional wave soldering?

A: Inline selective soldering eliminates the need for custom protective pallets. It significantly reduces solder and flux consumption. It generates far less dross and safely solders through-hole components on boards heavily populated with double-sided surface-mount devices.

Q: What information is needed to get an accurate selective soldering machine quote?

A: You must provide exact PCB dimensions, maximum top and bottom component heights, board weight with fixtures, throughput requirements, alloy type, and the specific machine-to-machine integration protocols your facility uses.

Q: Do space-saving selective soldering machines require external nitrogen generators?

A: They require a reliable nitrogen source to maintain wave stability and reduce dross. Depending on the machine's consumption rate and facility infrastructure, you can supply this via bottled liquid nitrogen tanks or a facility-level N2 generator.

Q: How do you program a compact selective soldering machine?

A: Programming is typically done offline using Gerber data, DXF files, or scanned high-resolution board images. This software allows engineers to define flux drop points and solder routing paths on a PC without stopping the machine's current production run.
