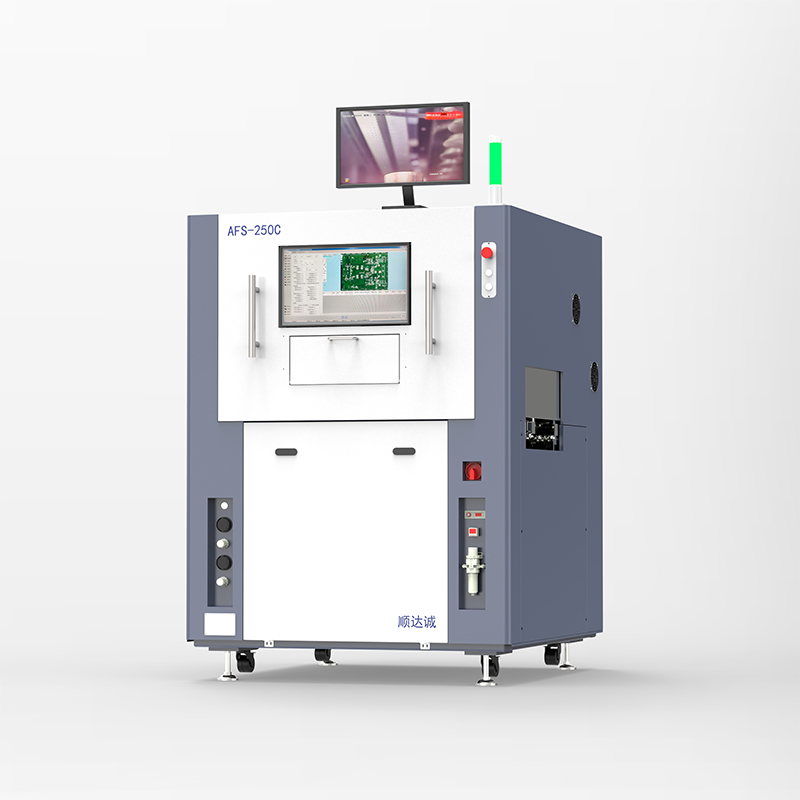

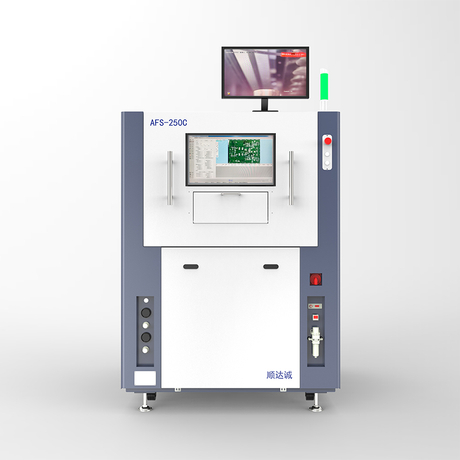

How Solder Wave Height Affects Selective Soldering Results

Modern mixed-technology PCB assembly demands extreme precision on the production floor. A fraction of a millimeter in fluid dynamics separates an IPC Class 3 compliant board from costly scrap. Unpredictable through-hole yields, rework bottlenecks, and field failures are frequently misdiagnosed. Engineers often blame thermal profiles or flux chemistry when troubleshooting these defects. However, the root cause is often inconsistent wave dynamics at the nozzle. Mastering these dynamics differentiates legacy operations from high-yield production. Evaluating equipment for wave stability directly impacts defect rates and overall reliability. Understanding solder wave height selective soldering parameters is the absolute foundation of process control. If the wave height fluctuates, every other programmed parameter becomes irrelevant.

Key Takeaways

• Precision Dictates Yield: Even minor fluctuations in solder wave height drastically alter thermal transfer and capillary action, directly impacting through hole soldering quality.

• Defect Correlation: Wave heights that are too low cause insufficient hole fill and open joints; heights that are too high lead to bridging, solder balls, and top-side component damage.

• Equipment Capability is the Bottleneck: True stable solder wave height control requires advanced pump technologies (e.g., electromagnetic) and closed-loop feedback systems, not just manual calibration.

• Alloy and Temperature Dependency: Lead-free alloys (like SAC305) and flux chemistry dramatically alter fluid density and surface tension, requiring dynamic pump adjustments to maintain stable wave heights.

• Scalability Requires Automation: For high-volume production, inline selective soldering equipment must automatically compensate for dross accumulation and alloy level changes to maintain wave consistency.

The Physics of Solder Wave Height in Selective Soldering

Ideal Wave Dynamics for Through Hole Soldering Quality

The exact physical requirements of the solder wave manifest at the peel-off point. This is where the fluid contacts the PCB bottom side. Upward fluid pressure must balance perfectly against the board topography. Consistent contact time allows the flux to activate and the alloy to wet the pad. Optimal meniscus formation depends on undisturbed surface tension. Wetted nozzles promote directional flow, dragging excess solder away from the joint. Non-wetted nozzles create symmetric overflow, which can destabilize the wave height if pump pressure fluctuates. Precise control over these variables determines through hole soldering quality across the entire assembly. When the wave hits the board, it must displace the flux, transfer heat instantly, and break away cleanly without dragging.

Engineers must monitor the wave's behavior during the entire contact cycle. The fluid must not pulse or flutter. A stable wave looks like a solid, unmoving dome of liquid metal. Any rippling indicates pump issues or nozzle blockages. The peel-off speed—the rate at which the board pulls away from the wave—also interacts with wave height. If the wave is too high during peel-off, it snaps back violently, creating solder balls. If it is too low, it breaks contact prematurely, leaving icicles on the component leads.

Capillary Action and Thermal Transfer Equations

Wave height dictates the initial thermal shock delivered to the component lead. It also drives subsequent heat transfer into the barrel of the via. Capillary action depends entirely on the wave's vertical pressure. If the wave does not adequately breach the annular ring, flux activation fails. Solder wetting cannot occur without sufficient thermal mass penetration. PCB thickness and copper weight alter the required wave height. A thick backplane requires higher sustained pressure to overcome thermal dissipation. Thin boards require lower wave heights to prevent thermal damage to adjacent traces.

Consider a 3.2mm thick server motherboard with heavy copper planes. The wave must push hard enough to force the liquid metal up the entire length of the via. The heat must travel ahead of the solder to prepare the copper surface. If the wave height drops by even 0.5mm, the thermal transfer stalls. The solder freezes halfway up the barrel. This creates a classic cold joint. Conversely, a 0.8mm flex-rigid board needs minimal upward pressure. A high wave will instantly flood the top side, destroying the assembly.

Alloy Density, Temperature, and Viscosity Variables

Lead-free alloys like SAC305 and SAC307 possess higher density and surface tension compared to traditional SnPb alloys. This physical difference affects the pump RPM needed to achieve identical wave heights. Heavier alloys require more mechanical force to push the fluid up through the nozzle. Temperature fluctuations within the solder pot alter fluid viscosity. A drop in temperature increases viscosity, which lowers the effective wave height at a constant pump speed. Tightly controlled heating loops are mandatory to prevent these destabilizing fluctuations. Dynamic pump adjustments compensate for these physical alloy changes during continuous operation.

Flux chemistry also plays a role in how the wave interacts with the board. High-solids rosin fluxes create a sticky barrier that the wave must punch through. Low-solids no-clean fluxes offer less resistance. The wave height must be calibrated to match the specific flux type. If the wave is too low, it won't displace a heavy rosin flux, leading to voiding. Operators must understand that changing the alloy or the flux requires a complete recalibration of the wave height parameters.

Symptoms of Improper Solder Wave Height

When the Wave is Too Low: Insufficient Hole Fill and Cold Joints

A wave that fails to provide adequate upward pressure causes severe mechanical and electrical consequences. Insufficient hole fill occurs when capillary action stalls mid-barrel. This lack of sustained thermal contact leads to cold solder joints. The alloy solidifies before fully wetting the component lead and the via plating. Inspection failure modes multiply rapidly under these conditions. IPC-A-610 Class 2 and Class 3 standards mandate specific vertical hole fill percentages, often requiring at least 75% penetration. A low wave guarantees violations of these standards, forcing manual rework and increasing thermal stress on the PCB.

Field failures often trace back to these hidden defects. A joint with only 50% hole fill might pass initial electrical testing. However, thermal cycling in the field will eventually crack the weak connection. The mechanical strength of a through-hole joint relies entirely on the barrel fill. When operators see consistent insufficient hole fill across a batch, the first troubleshooting step must be verifying the wave height. Do not immediately increase the solder pot temperature, as this degrades the alloy and increases dross formation.

When the Wave is Too High: Bridging, Solder Balls, and Top-Side Flooding

An over-pressurized wave collapses unpredictably over the nozzle shroud. This chaotic fluid dynamics scenario introduces excessive solder volume to the joint. Solder bridging between fine-pitch adjacent pins becomes highly probable. Solder balls form as the collapsing wave spatters across the solder mask. Top-side flooding represents a catastrophic failure mode. Solder breaches the component side of the board through the via. This flooding shorts SMD components, damages sensitive connectors, and leaves unwanted flux residues in inaccessible areas. Controlling the upper limit of the wave is just as critical as maintaining the minimum height.

Top-side flooding is particularly damaging because it is often impossible to rework. If solder flows into a high-density connector on the top side, the entire board becomes scrap. High waves also cause excessive thermal shock to the components. The prolonged contact with a massive volume of liquid metal can delaminate the PCB substrate or crack ceramic capacitors located near the through-hole pins. Process engineers must establish strict upper control limits for wave height to prevent these catastrophic defects.

Evaluating Selective Soldering Machines for Wave Stability

Pump Technologies: Electromagnetic vs. Mechanical Impellers

Traditional mechanical impeller pumps rely on rotating shafts and bearings. They are prone to wear, dross interference, bearing play, and motor pulsing. These mechanical realities introduce micro-fluctuations in fluid pressure. Electromagnetic pumps provide frictionless, continuous flow without moving parts. They use magnetic fields to propel the liquid metal up the nozzle. This results in superior wave height consistency. Pump selection directly influences maintenance downtime and defect rates. Any modern selective soldering machine should utilize electromagnetic technology for high-reliability applications.

Mechanical pumps require frequent teardowns. Dross gets caught in the impeller blades, restricting flow. The operator must then increase the pump RPM to maintain the same wave height. This creates a vicious cycle of instability. Electromagnetic pumps eliminate this issue entirely. The liquid metal flows smoothly through a sealed channel. There are no moving parts to wear out or jam. This fundamental difference in pump architecture is the primary driver of wave stability in modern equipment.

Closed-Loop vs. Open-Loop Systems for Stable Solder Wave Height Control

Open-loop systems rely on operator intervention, trial-and-error, and manual calibration. They cannot react to environmental changes or alloy depletion. Closed-loop feedback systems eliminate this guesswork. Laser triangulation sensors provide continuous, non-contact real-time measurement of the wave peak. Titanium contact needle sensors offer periodic electrical continuity mapping to detect height variations. These closed-loop systems automatically adjust pump RPM to compensate for solder pot depletion and dross buildup. This architecture guarantees stable solder wave height control with zero deviation during production runs.

Without closed-loop control, the wave height will inevitably drift. As the machine consumes solder, the level in the pot drops. An open-loop pump running at a constant RPM will produce a lower wave as the pot level decreases. The operator must manually intervene to add solder or adjust the pump speed. Closed-loop systems handle this automatically. The sensor detects the drop in wave height and signals the pump controller to increase power. This real-time adjustment happens in milliseconds, ensuring the wave remains perfectly stable for every single board.

Nitrogen Inertion and Its Effect on Wave Surface Tension

Localized nitrogen shielding at the solder nozzle alters fluid behavior. Purity levels of 99.999% N2 prevent oxidation on the wave surface. This lack of oxidation prevents dross formation at the peel-off point. Reducing surface tension allows for a lower, more stable wave height. It achieves better wetting on the component lead. The cost-to-benefit ratio of nitrogen consumption heavily favors its use. The reduction in manual rework, eliminated cleaning cycles, and decreased dross maintenance offset the gas consumption costs entirely.

Nitrogen inertion also extends the life of the nozzle. Without oxygen, the liquid metal cannot react with the nozzle material as aggressively. This preserves the internal geometry of the nozzle, maintaining consistent fluid dynamics over time. When evaluating equipment, engineers must inspect the nitrogen delivery system. The shroud must provide laminar flow around the wave. Turbulent nitrogen flow will actually destabilize the wave, defeating the purpose of the inertion system.

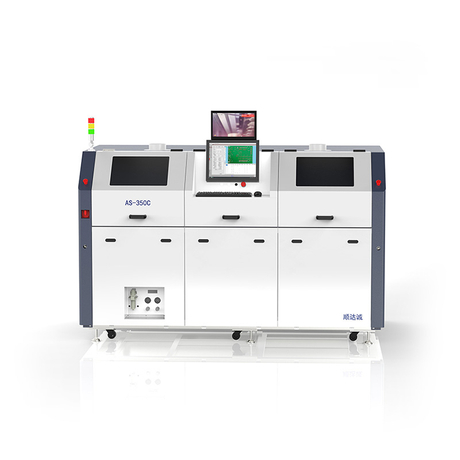

Scaling Production: Inline Selective Soldering Equipment Considerations

Maintaining Wave Height Consistency Across High-Volume Runs

Maintaining wave stability in continuous production presents distinct challenges. Continuous alloy consumption lowers the physical level in the solder pot. This drop requires the pump to work harder to maintain the same wave height. Automated solder wire feeders with level-sensing interlocks solve this problem. They maintain constant pot levels without operator intervention. Multi-nozzle, multi-pot systems require advanced software. Wave height must be synchronized across different stations with distinct cycle times. High-volume inline selective soldering equipment relies on these automated subsystems to prevent drift.

In a high-volume setting, manual pot filling is a massive liability. Dropping a cold bar of solder into the pot crashes the temperature. This temperature drop spikes the viscosity and immediately lowers the wave height. Automated wire feeders introduce alloy slowly and continuously. This prevents thermal shock to the pot and maintains absolute stability. Engineers must ensure the wire feeder is tied directly to the pot level sensor for seamless operation.

Maintenance Cycles, Dross Accumulation, and Nozzle Degradation

Dross management directly interferes with pump intake and wave height. Accumulated oxides restrict fluid flow, forcing the pump to increase RPM to compensate. Nozzle wear and chemical erosion alter the exit orifice diameter. Aggressive lead-free, high-tin alloys accelerate this erosion. A wider orifice degrades fluid dynamics and lowers the effective wave height. Process engineers must establish preventative maintenance schedules based on wave stability metrics. Cycle counts dictate nozzle replacement and pump cleaning, rather than arbitrary calendar timeframes.

1. Monitor pump RPM trends daily. A steady increase in RPM to maintain the same wave height indicates dross buildup in the intake.

2. Inspect nozzles under magnification weekly. Look for pitting or widening of the orifice.

3. Replace nozzles based on cycle counts, not visual failure. Once a nozzle visibly degrades, it has already caused defects.

4. Clean the pump intake manifold strictly according to the manufacturer's cycle recommendations.

5. Verify nitrogen shroud alignment after every maintenance event to ensure laminar flow.

Trade-offs: Throughput Speed vs. Wave Stability

Increasing robotic XYZ routing speed reduces cycle time but risks wave stability. Faster drag soldering requires precise wave height tuning. Moving the nozzle too quickly pulls the wave off-center. This trailing effect causes icicles, micro-bridging, and skipped joints. Optimal wave contact time must dictate the maximum routing speed. Calculating the balance between throughput and first-pass yield requires empirical testing. Pushing the machine beyond its fluid dynamic limits always results in higher rework volumes.

Engineers often try to speed up the process by increasing the drag speed. However, the fluid dynamics of the wave cannot keep up. The liquid metal stretches and breaks, leaving incomplete joints. To solder faster, you must use a larger nozzle or a multi-nozzle system, not just move the robot faster. The wave must have time to transfer heat and allow the flux to outgas. Sacrificing contact time for throughput is a guaranteed path to field failures.

Implementation Risks and Mitigation Strategies

Calibrating Wave Height for Varying PCB Thicknesses and Thermal Masses

Using a universal wave height for diverse product portfolios introduces massive risk. Thin 0.8mm RF boards will flood if subjected to the pressure required for thick 3.2mm backplanes. Process engineers must program distinct wave heights into the machine's recipes. Each recipe must match specific board thermal profiles. Thermal profiling boards and test coupons validate these settings before production runs. This empirical validation prevents batch failures caused by mismatched fluid pressure and thermal mass.

Creating a robust recipe requires running instrumented boards through the machine. Thermocouples placed inside the vias will verify if the wave height is sufficient to drive heat up the barrel. If the top of the via does not reach the alloy's liquidus temperature, the wave height or contact time must increase. Never guess these parameters. Rely entirely on thermal profiling data to establish the baseline wave height for each specific assembly.

Operator Training and Process Documentation

Operator error in manual wave height adjustments leads to catastrophic batch failures. Standard operating procedures (SOPs) must dictate daily wave height verification and nozzle inspection protocols. Limiting manual override capabilities in the equipment software mitigates human error. Role-based access control (RBAC) ensures process control remains strictly with process engineers. Operators should only execute validated recipes, never modify pump RPM parameters on the fly.

Training must focus on identifying the visual signs of wave instability. Operators need to know what a healthy wave looks like. They must be empowered to stop the line if the wave begins to flutter or pulse. However, they must not be allowed to adjust the pump settings to fix it. The SOP must require them to escalate the issue to a process engineer. This strict separation of duties prevents well-meaning operators from masking mechanical issues with software overrides.

Establishing Baseline Metrics for Solder Joint Inspection (AOI/AXI)

Detecting wave-height-induced defects post-production requires specific inspection parameters. Automated Optical Inspection (AOI) and Automated X-ray Inspection (AXI) must look for insufficient hole fill, voiding, and micro-bridging. Configure these systems to flag specific volumetric anomalies. Create a feedback loop from the inspection data back to the machine's parameters. If AXI detects a trend of 60% hole fill, engineers immediately increase the programmed wave height for that specific component profile.

AXI is particularly critical for verifying barrel fill. AOI can only see the top and bottom fillets. It cannot see inside the via. A joint might look perfect on the bottom side but have zero penetration up the barrel. AXI reveals the true impact of the wave height. By correlating AXI data with specific wave height settings, engineers can dial in the process with absolute certainty. This data-driven approach eliminates the guesswork from selective soldering.

Conclusion

• Audit current first-pass yield data specifically for through-hole components to identify hidden wave stability issues.

• Evaluate existing pump technology and schedule upgrades to electromagnetic systems if mechanical impellers are causing downtime.

• Implement role-based access control on all selective soldering equipment to lock down wave height parameters.

• Request a technical demo from equipment manufacturers focusing exclusively on closed-loop feedback and automated pot level management.

FAQ

Q: What is the optimal solder wave height for selective soldering?

A: The optimal height focuses on the peel-off point, typically 1.5mm to 2.5mm above the nozzle. This depends heavily on PCB thickness and lead length. It must be programmed per application to match the specific thermal mass of the board.

Q: How does solder wave height affect through hole soldering quality?

A: It dictates the balance between capillary action for hole fill and the prevention of bridging. Sufficient height provides the upward pressure needed to fill the via, while controlled limits prevent solder from flooding the top side of the board.

Q: Why does my selective soldering machine have an unstable wave?

A: Common culprits include dross buildup in the pump intake, mechanical impeller wear, fluctuating solder pot levels, temperature instability, or relying on open-loop control systems that cannot auto-correct fluid dynamics.

Q: What is stable solder wave height control?

A: It is the integration of sensors, like laser triangulation or contact needles, with machine software. This closed-loop system automatically adjusts pump speed in real-time to maintain a constant wave height regardless of alloy depletion or environmental variables.

Q: How do lead-free alloys like SAC305 affect wave height compared to SnPb?

A: Lead-free alloys have higher density and surface tension. They require higher pump RPM to achieve the same wave height as SnPb. They also erode nozzles faster, requiring more frequent calibration to maintain stable fluid dynamics.
