Can Selective Wave Soldering Save Energy on Your PCB Line?

Energy consumption is becoming one of the most scrutinized aspects of modern manufacturing. For PCB producers, the soldering process—traditionally one of the most energy-intensive steps—offers surprising potential for savings. A well-engineered selective wave soldering machine can deliver precise, high-quality joints while consuming significantly less power and nitrogen than conventional full-wave systems. At Dongguan Sundarc Automation Technology Co., Ltd., we’ve seen how innovations in design, component control, and intelligent system integration can transform energy efficiency from a cost concern into a core competitive advantage for manufacturers seeking both productivity and sustainability.

Where Does the Energy Go in Selective Soldering?

Every watt used by a soldering line serves a purpose, but not all of it adds value. Understanding where power goes is the first step toward reducing it. The main energy consumers in a selective soldering system are the preheaters, solder pumps, and nitrogen supply units.

Preheaters—typically infrared or convection types—prepare the PCB and flux for soldering. Poor insulation, oversized heaters, or overextended preheat zones can waste large amounts of power. The solder pot and its pump are another major draw, maintaining molten metal and continuous flow. Nitrogen systems, used to create inert atmospheres around solder nozzles, also contribute both direct (gas) and indirect (compressor or heater) energy costs.

Even small inefficiencies in these components multiply across long production shifts. For instance, a 5% inefficiency in preheating or nitrogen delivery can translate to hundreds of wasted kilowatt-hours over a month of continuous operation. That’s why manufacturers increasingly focus on preheat zoning, thermal standby control, and nitrogen recovery systems when selecting next-generation equipment. When the machine is properly calibrated, every degree of heat and every liter of gas is used where it truly matters.

Design Features That Make a Machine More Energy Efficient

The most effective energy savings begin at the design stage. Modern energy efficient selective wave soldering systems integrate several intelligent engineering features that reduce consumption without compromising performance or quality.

First, modular preheaters with low-mass elements heat only when required, minimizing idle draw. Instead of heating the entire tunnel, targeted preheat zones activate on demand, cutting unnecessary use. Second, mini-wave nozzles concentrate solder flow precisely where needed. This not only improves wetting accuracy but also reduces the thermal load compared with wide, continuous waves.

Another important feature is zone-level on/off control. When a specific section of the machine is idle—say, during a batch changeover—the control system powers down heaters and pumps in that area, rather than the entire line. This approach can cut total energy usage significantly across multiple shifts.

Low-nitrogen designs are also a hallmark of advanced systems. By optimizing nozzle geometry and gas flow, these machines maintain solder quality with less nitrogen, reducing both consumption and cost. Furthermore, modern controllers continuously monitor temperature and gas data, dynamically adjusting energy input for stable performance. Together, these design elements enable a smarter, leaner soldering process that aligns with sustainability goals without slowing production.

Operating Practices That Further Reduce Energy Use

Technology is powerful, but people and processes make the difference. Even the most efficient equipment performs best under thoughtful operation. Several daily practices can yield measurable energy savings across a production floor.

Smart scheduling is one of the most effective strategies. Grouping similar board types minimizes the number of preheat and nozzle adjustments needed per shift, allowing the system to stay within its optimal thermal range. Frequent power cycling between small batches can waste more energy than continuous operation at stable temperatures.

Thermal standby functions are another tool often overlooked. When the line is temporarily idle—such as during lunch breaks or setup changes—putting the system into standby mode maintains minimal heat to reduce full reheating demands later.

Routine maintenance also plays a critical role. Dust buildup on heaters, aging solder pumps, or clogged nitrogen lines all force the system to work harder for the same output. Regular inspection ensures every component performs at its designed efficiency. Even small preventive steps—like checking seals on nitrogen fittings or verifying the calibration of preheat sensors—can extend equipment life and sustain energy efficiency.

Additionally, operators can track energy trends using the machine’s built-in data system. Monitoring metrics such as preheat zone temperature stability or nitrogen consumption per cycle allows managers to fine-tune production parameters for lower usage without affecting throughput.

How to Estimate Energy Behavior Before You Buy

Before making a purchase, plant managers can estimate the relative energy impact of different systems using a qualitative checklist. Even without detailed consumption data, asking the right questions provides valuable insight into a machine’s true operating cost.

For example, how many preheat zones does the system use, and are they individually controllable? Does the solder pot employ variable-speed pumps or fixed-speed ones? What is the nitrogen flow rate per nozzle, and can it be adjusted automatically? Are heaters designed with fast response elements that reach temperature efficiently, or do they maintain constant power regardless of load?

Understanding duty cycles—how often pumps, heaters, and fans operate at full power—also helps estimate total energy behavior. A system with smart temperature control and proportional output will almost always outperform one with simple on/off logic. It’s also useful to compare warm-up times and cooling performance; faster stabilization often means better energy recovery and less wasted heat. By evaluating these factors, buyers can make informed decisions that align with both production and sustainability targets.

Sustainability as a Purchasing Criterion

Energy efficiency is no longer just a feature—it’s a purchasing standard. For manufacturers adopting ESG or carbon-reduction initiatives, soldering equipment must demonstrate verifiable efficiency performance. When evaluating suppliers, request documentation on energy tests, nitrogen consumption per cycle, and thermal efficiency data.

Certifications such as CE or ISO not only confirm safety and quality compliance but also indicate adherence to energy and environmental standards. Vendors that offer lifecycle maintenance packages can further ensure that performance remains consistent over time. Preventive maintenance contracts and remote monitoring options allow teams to track temperature trends, pump loads, and gas usage—key indicators of efficiency health.

At Sundarc, we encourage customers to include energy data in their total cost of ownership (TCO) evaluations. The slightly higher upfront investment in efficient hardware often pays back quickly through lower utility bills and reduced nitrogen consumption. Sustainability thus becomes a practical business advantage rather than an abstract goal, helping companies meet both internal performance goals and external regulatory expectations.

The Broader Value of Energy-Conscious Manufacturing

Beyond the numbers, adopting energy-conscious soldering practices signals operational maturity and environmental responsibility. Customers in automotive, medical, and renewable sectors increasingly expect their suppliers to demonstrate sustainability efforts. By integrating efficient technologies and smart operation habits, PCB producers can position themselves as forward-thinking partners in global supply chains.

A well-optimized selective soldering line not only conserves energy but also enhances process stability. Lower thermal stress improves solder joint consistency, extending the lifespan of finished products. Energy-efficient soldering supports both profitability and reliability—two cornerstones of long-term competitiveness—and reflects a company’s ability to balance precision engineering with environmental responsibility.

Conclusion

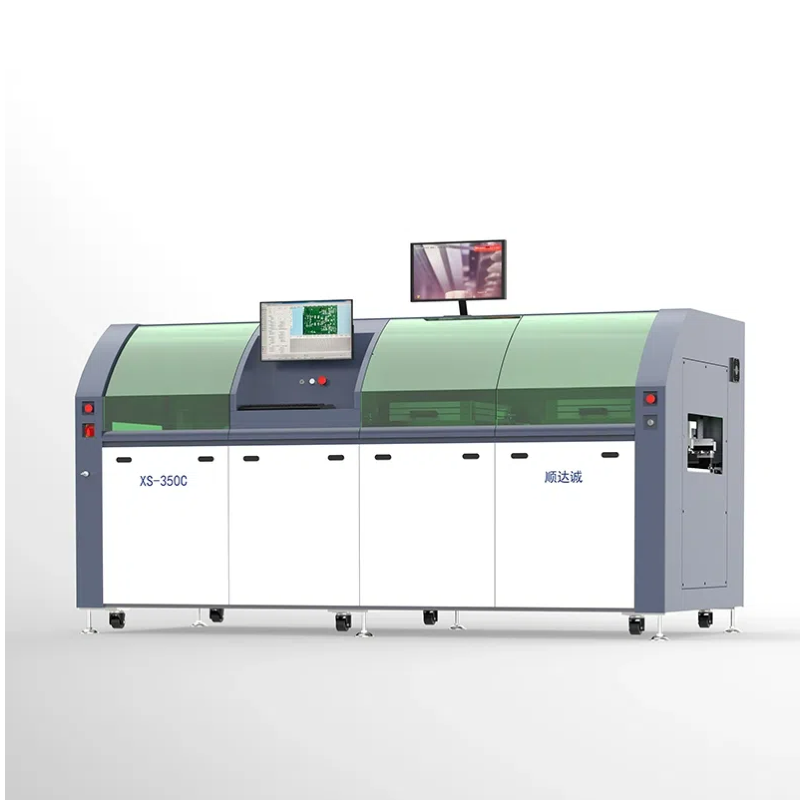

Energy efficiency in soldering is no longer optional—it’s a measurable performance factor that shapes cost, quality, and sustainability outcomes. Choosing an advanced selective wave soldering machine designed for controlled heating, optimized nitrogen use, and intelligent zone management can dramatically reduce energy footprints while maintaining precision and throughput.

At Dongguan Sundarc Automation Technology Co., Ltd., we continue to innovate in energy-efficient soldering solutions that help manufacturers balance performance and sustainability. To explore how our energy saving selective wave soldering systems can fit your production line, contact us today to schedule a consultation or view our latest specifications.
