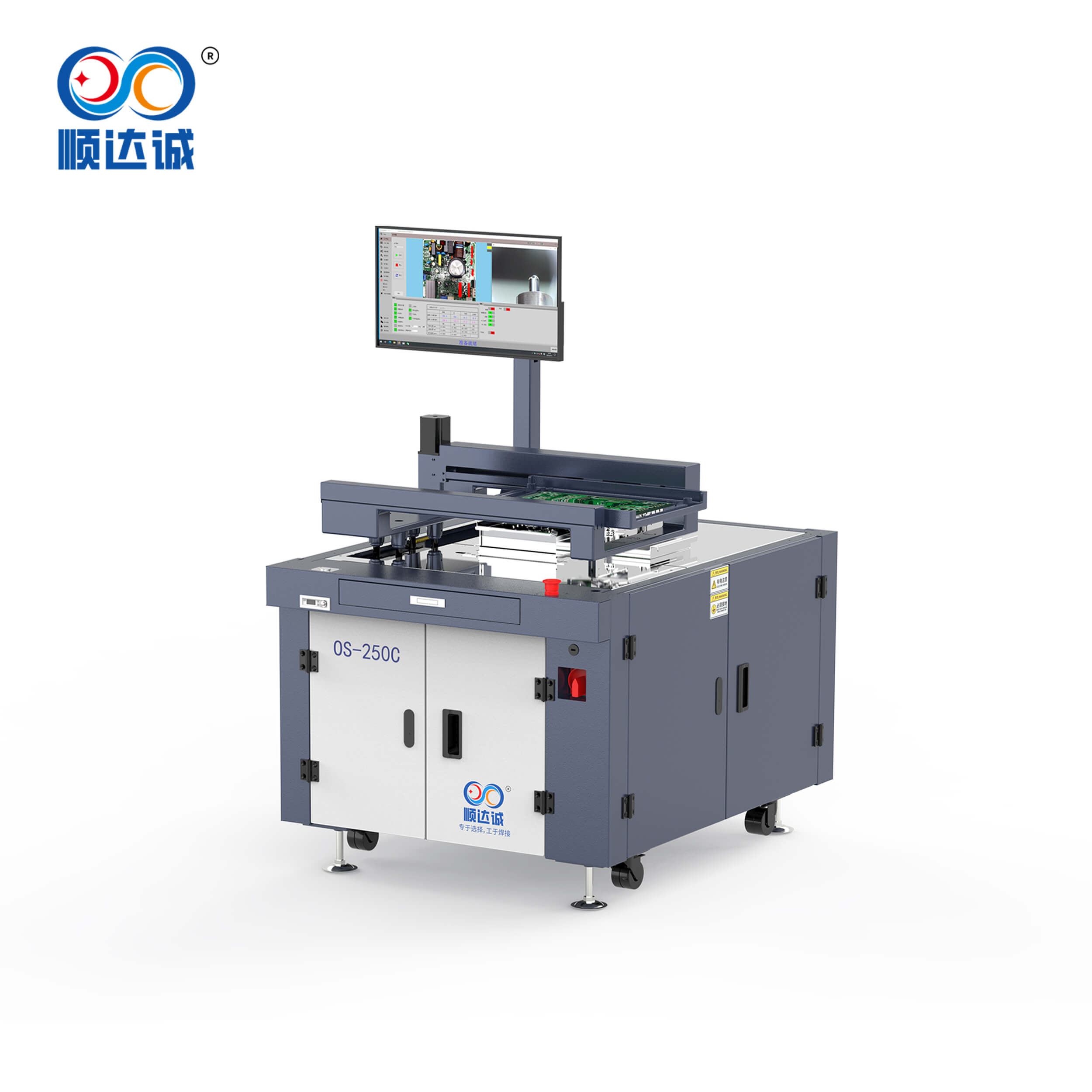

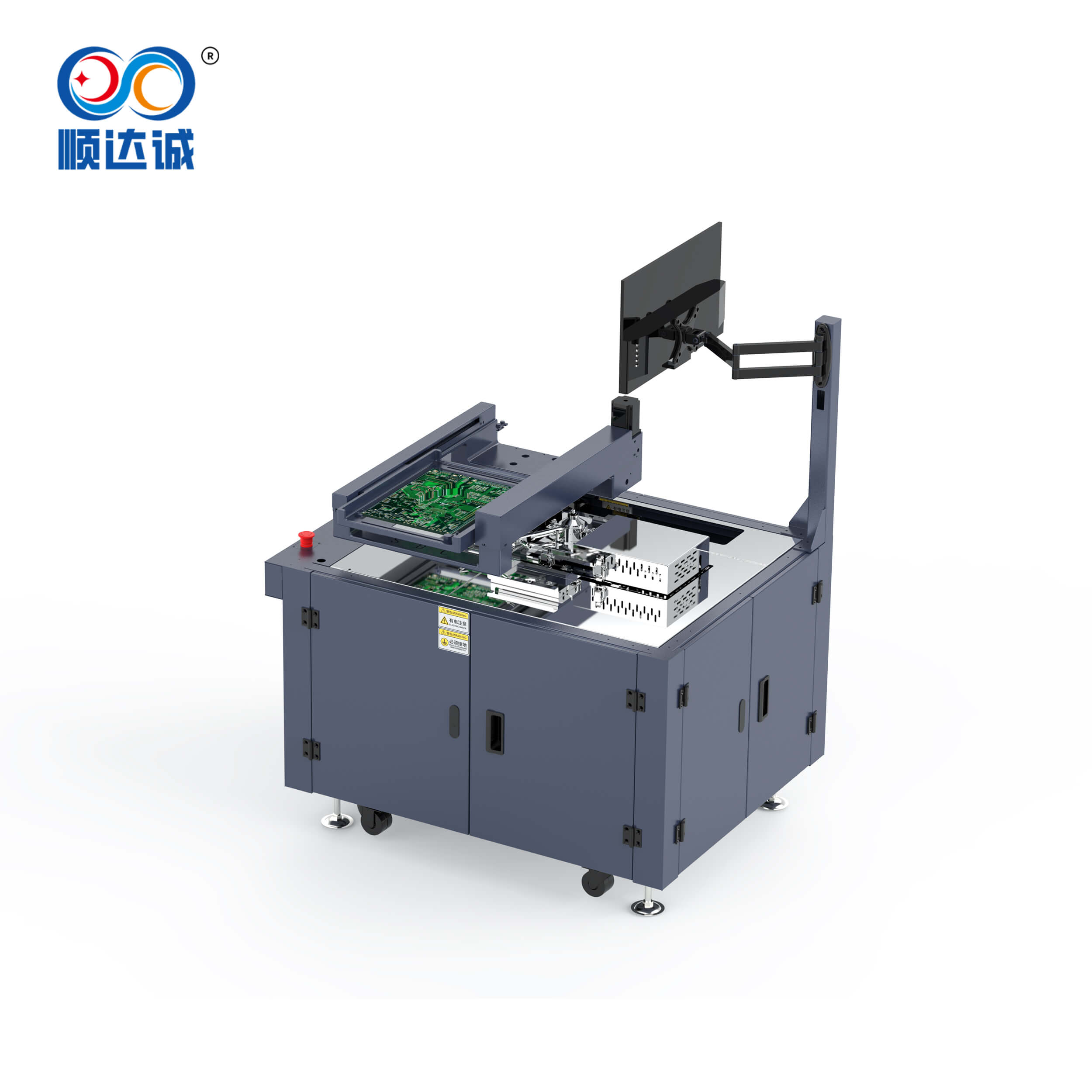

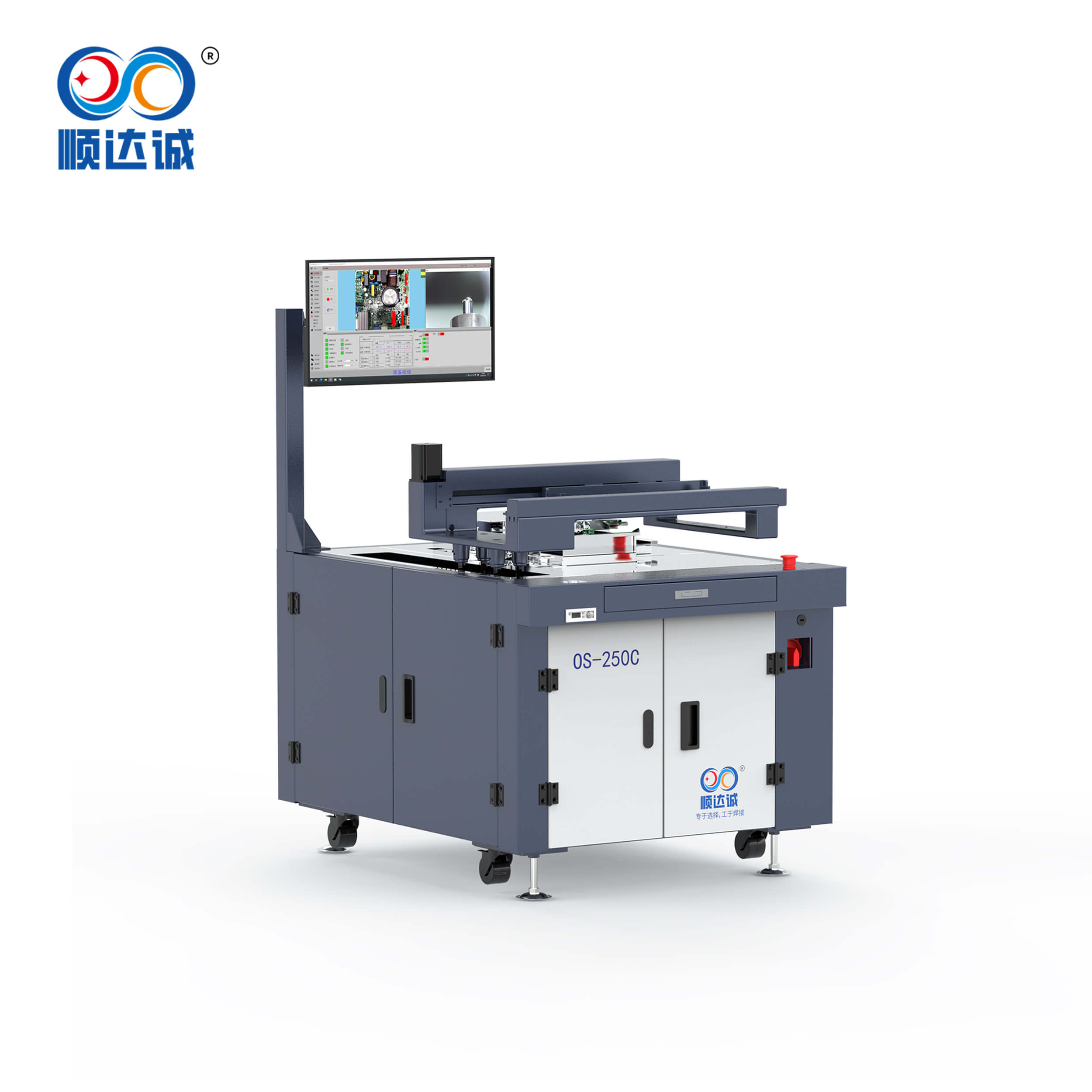

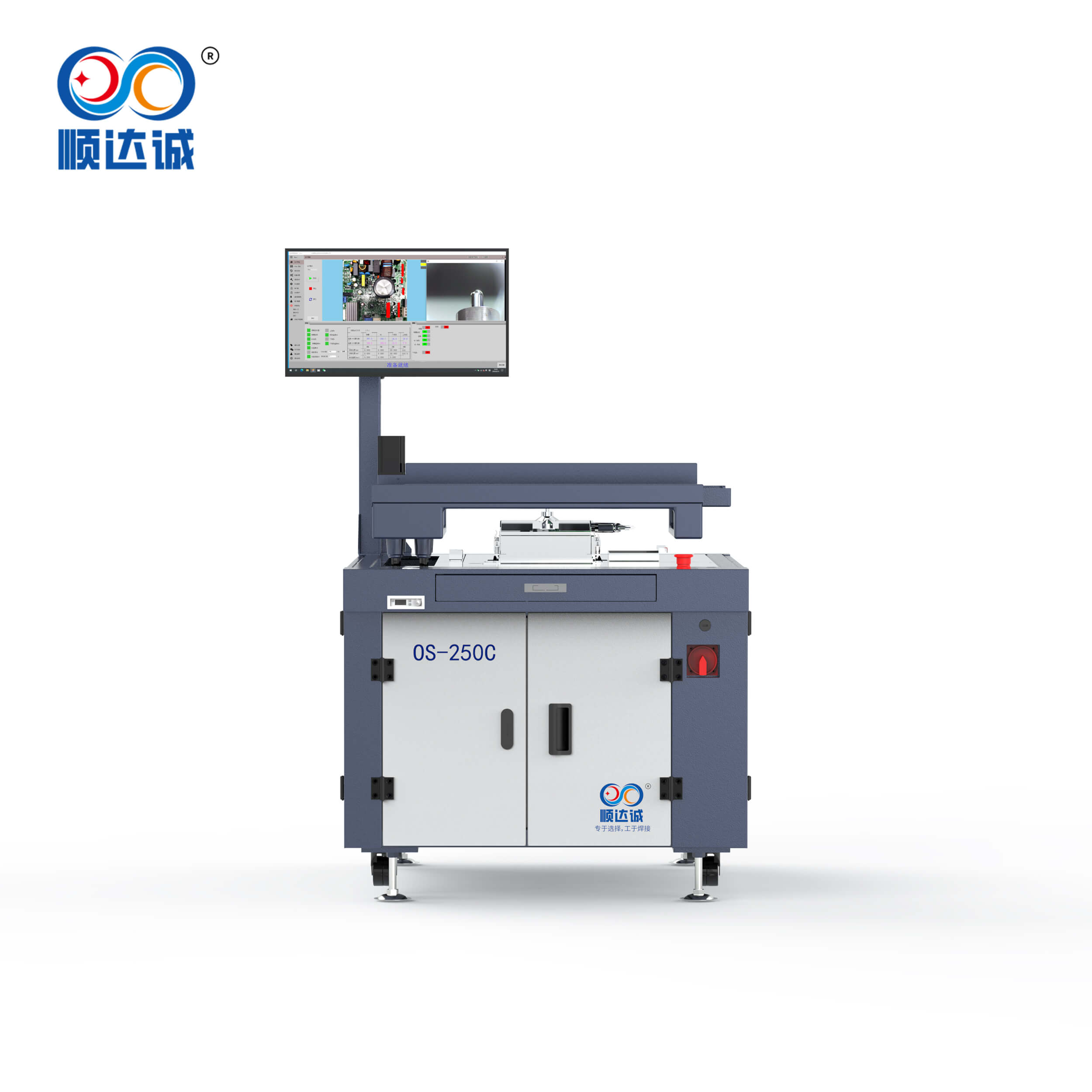

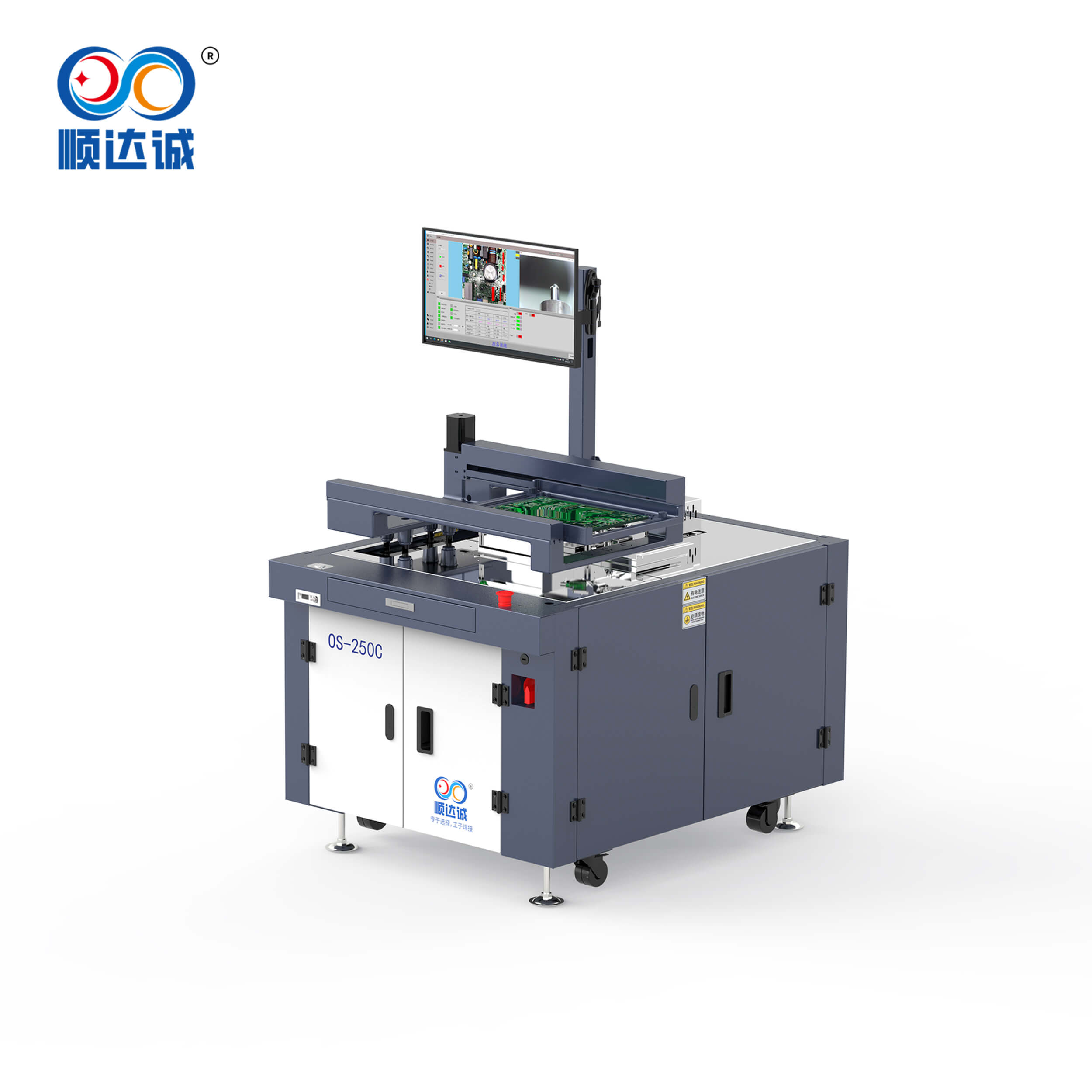

Offline Mini Selective Wave Soldering Machine for Prototyping Production
This Mini Offline Selective Wave Soldering Machine is a compact, high-precision soldering solution optimized for low-volume, high-mix PCB production, R&D prototyping, and high-standard precision soldering scenarios. With a floor space of only 0.9㎡ and a 16kg lightweight precision solder pot, the equipment delivers stable, uniform tin output for full-penetration, residue-free, consistent solder joints, effectively eliminating cold joints, bridging, and missing solder defects. Unlike traditional wave soldering systems that feature fixed parameters, frequent rework, excessive solder dross waste, large footprint and heavy flux residue, this unit supports fast product changeover and one-click program switching. Each soldering point allows independent customization of temperature, dwell time, tin wave height and flux dosage, perfectly matching diverse component and pad requirements and meeting strict industrial standards for high yield rate, full tin penetration, consistent soldering quality and ultra-high cleanliness.Boasting strong compatibility and flexible process performance, the machine fully supports double-sided PCB soldering and complex PCBs with tall bottom-side components, solving conventional pain points such as soldering dead zones and component collision. Precise flux dosing and stable tin wave operation greatly reduce solder dross and residual flux, ensuring superior tin penetration, uniform solder appearance and high board cleanliness. Designed as an independent offline unit, it requires no assembly line connection and adopts manual loading and unloading, enabling ultra-fast product switching. It serves as a cost-effective, zero-defect soldering solution for precision electronics prototyping, customized small-batch production and high-cleanliness manufacturing.-
OS-250C
-
Sundarc
Quantity:
Product introduction
This equipment occupies less than 1 square meter of floor space, and the weight of the solder pot is 16 kg. It can perform precision welding. It can solve the welding problems of small batches and multiple varieties of products, with fast line change and programming, and can set the parameters of each soldering point individually. It can weld double-sided PCBs and products with components at the bottom that are too high Product Advantage
The equipment's design integration of flux spraying and soldering module, preheating function optional.
Fixed solder pot, moving PCB to achieve soldering.
The equipment occupies an area of about 0.8㎡ and has low power consumption.
Manually place and remove PCB boards.
Product Application
With reliable soldering performance, stable operation and wide compatibility, our mini offline selective wave soldering machine is widely used in high-precision and high-reliability manufacturing fieldsworldwide. It covers military electronics, aerospace equipment, medical precision devices, new energy electronics, automotive electronics, communication base station equipment, smart home appliances, digital consumer products, stage lighting equipment and other industries. It is an ideal soldering equipment for small-batch customized production, product proofing and high-quality mass production of precision electronic PCBs.
PCBA Field
Electronic Components
Industrial Control
Aerospace
Home Appliances
Military Electronics
Marine Electronics
Automotive Electronics
Communication Equipment
Stage Lighting
New Energy
Medical Devices
Product Operate Guide
In PC, support many different soldering modes. Customers can configure distinct parameters for each soldering joint, achieving precise control over welding height, temperature, and speed. Simple operation, can quickly learn to operate the machine. Furthermore, our after-sales team offers 24-hour online one-to-one training to assist you.
-
