How Selective Wave Soldering Machines Improve Soldering Quality And Consistency

Introduction

In the ever-evolving landscape of electronic manufacturing, soldering quality and consistency remain pivotal to the reliability and performance of electronic assemblies. Traditional soldering methods often fall short in meeting the precision and efficiency demanded by modern industries. This is where selective wave soldering machines come into play, revolutionizing the way manufacturers approach soldering tasks. By focusing on specific areas of a printed circuit board (PCB), these machines enhance soldering accuracy, reduce defects, and improve overall production efficiency.

The Evolution of Soldering Techniques

Soldering has undergone significant transformations since its inception. Early methods relied heavily on manual processes, which were time-consuming and prone to human error. With the advent of wave soldering, manufacturers experienced a leap in productivity by simultaneously soldering multiple joints. However, conventional wave soldering is not without its drawbacks, especially when dealing with complex PCBs that require a mix of through-hole and surface-mount components.

The introduction of selective soldering addressed these challenges by allowing targeted solder application. Selective wave soldering machines emerged as a solution that combines the efficiency of wave soldering with the precision of selective processes. This technological advancement caters to the increasing demand for miniaturization and high-density PCB assemblies in industries such as aerospace, automotive, and consumer electronics.

Understanding Selective Wave Soldering Machines

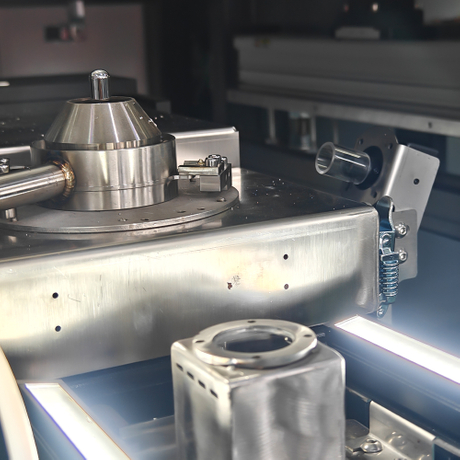

Selective wave soldering machines are specialized equipment designed to solder specific areas on a PCB without impacting adjacent components. They utilize a controlled wave of molten solder to create reliable joints precisely where needed. Key components of these machines include fluxing systems, preheating zones, solder pots, and nozzles that direct the solder wave.

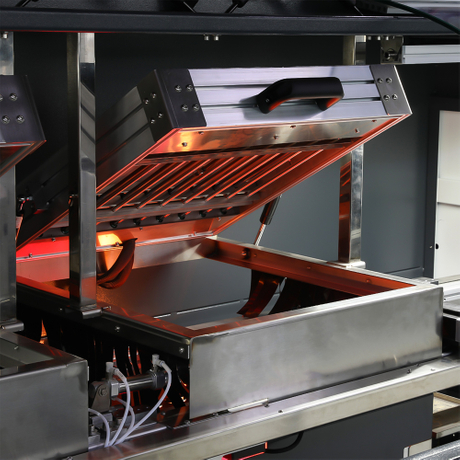

The process begins with the application of flux to prepare the soldering surfaces and enhance solder flow. Preheating zones then elevate the temperature of the PCB to prevent thermal shock and improve solder adhesion. Finally, the solder wave is carefully directed to the target areas using programmable nozzles, ensuring that only the intended joints are formed.

Benefits of Precision Soldering

Selective wave soldering machines offer unmatched precision in soldering operations. By focusing the solder application, they minimize the risk of bridging and solder splashes that can occur in traditional methods. This precision is crucial for PCBs with high component density and mixed-technology assemblies where heat-sensitive components coexist with through-hole parts.

Moreover, the controlled environment within these machines allows for consistent solder joints across multiple production runs. This consistency reduces the need for rework and enhances the overall quality of the final product. Manufacturers can thus meet stringent industry standards and customer expectations more effectively.

Impact on Soldering Quality

The utilization of selective wave soldering machines profoundly impacts soldering quality. The precision targeting minimizes thermal stress on components, reducing the likelihood of damage due to excessive heat. Additionally, by applying solder only where necessary, the process conserves materials and reduces waste.

Defect rates are significantly lowered as issues like insufficient solder, cold joints, and solder bridges are mitigated. A study published in the Journal of Electronics Manufacturing highlighted that manufacturers implementing selective soldering observed a 30% reduction in soldering defects compared to traditional methods. This improvement translates to higher reliability and longevity of electronic products.

Case Study: Automotive Electronics

In the automotive industry, electronic components must withstand harsh environments and perform reliably over extended periods. A leading automotive electronics manufacturer adopted selective wave soldering machines to enhance the quality of their control modules. By implementing this technology, they achieved a remarkable decrease in field failures attributed to soldering defects, reinforcing their reputation for quality and dependability.

Enhancing Production Consistency

Consistency in production is as critical as the initial quality of solder joints. Selective wave soldering machines contribute to production consistency through automation and precise control of process parameters. The programmable nature of these machines ensures that each PCB undergoes the same soldering conditions, eliminating variability introduced by manual operations.

Consistency is further enhanced by real-time monitoring and adjustments. Advanced machines are equipped with sensors and software that detect deviations in temperature, solder flow, and other critical factors. This capability allows for immediate corrections, maintaining optimal conditions throughout the production cycle.

Reducing Operational Costs

While the initial investment in selective wave soldering equipment may be substantial, the long-term cost benefits are significant. Improved soldering quality and consistency reduce the need for rework, which can be costly and time-consuming. Additionally, efficient use of solder and flux materials lowers consumable expenses.

Manufacturers also benefit from reduced labor costs due to automation. Operators can oversee multiple machines or focus on quality control tasks rather than manual soldering. This shift not only improves efficiency but also enhances workforce utilization.

Integration with LED Lighting Soldering

The proliferation of LED lighting technologies presents unique soldering challenges due to the thermal sensitivity and layout of LED components. Selective wave soldering machines offer solutions tailored to LED lighting soldering requirements. By controlling heat exposure and optimizing solder flow, these machines prevent thermal damage to LEDs and maintain the integrity of the lighting modules.

Manufacturers specializing in LED products have reported enhanced performance and longevity of their products post-integration of selective soldering processes. The ability to maintain consistent solder joints in LED assemblies is crucial for energy efficiency and product reliability, key factors in the competitive LED lighting market.

Technological Advancements

Recent advancements in selective wave soldering technology have introduced features such as dual solder pots, nitrogen inerting, and improved software interfaces. Dual solder pots allow for the use of different solder alloys within the same machine, catering to diverse product requirements without significant downtime.

Nitrogen inerting reduces oxidation during soldering, resulting in cleaner joints and improved mechanical strength. Enhanced software interfaces provide user-friendly programming and process control, enabling manufacturers to quickly adapt to new products and specifications.

Implementing Selective Soldering in Manufacturing

Integrating selective wave soldering machines into existing manufacturing lines requires careful planning. Key considerations include machine compatibility, workflow optimization, and staff training. Manufacturers must assess their production needs and choose equipment that aligns with their volume and product complexity.

Workflow optimization involves arranging production layouts to maximize efficiency. Selective soldering machines can be configured for inline or offline operations, depending on the specific manufacturing setup. Training is essential to ensure that operators and technicians can effectively utilize the machines and troubleshoot potential issues.

Quality Assurance and Compliance

Implementing selective soldering processes necessitates adherence to industry standards and regulations. Quality assurance protocols should be established to monitor solder joint integrity and compliance with specifications. Regular maintenance and calibration of equipment are crucial to sustain optimal performance.

Manufacturers should also stay informed about evolving industry standards related to soldering, such as IPC standards for electronics assembly. Compliance not only ensures product quality but also enhances market competitiveness by meeting customer and regulatory expectations.

Future Trends in Selective Soldering

The selective soldering industry continues to evolve with innovations aimed at further improving quality and efficiency. Emerging trends include increased automation, integration with Industry 4.0 concepts, and advancements in solder materials. Automation extends beyond soldering to include loading and unloading processes, inspection, and data analytics.

Integration with Industry 4.0 involves connecting machines to networks for real-time data exchange. This connectivity enables predictive maintenance, process optimization, and enhanced decision-making capabilities. Advancements in solder materials focus on lead-free alloys and formulations that offer superior performance and environmental compliance.

Impact of Artificial Intelligence

Artificial Intelligence (AI) is making inroads into selective soldering through machine learning algorithms that optimize process parameters. AI can analyze vast amounts of production data to identify patterns and suggest improvements. This technology enhances consistency and reduces the likelihood of defects by continuously refining soldering processes.

For instance, AI can adjust nozzle movements, solder wave characteristics, and temperature profiles in real-time. Manufacturers adopting AI-driven selective soldering solutions position themselves at the forefront of innovation, offering superior products and operational efficiency.

Conclusion

Selective wave soldering machines have undeniably transformed the landscape of electronic manufacturing. By providing precision, enhancing soldering quality, and ensuring consistency across production cycles, they address the challenges posed by modern PCB assemblies. The adoption of this technology is not merely an upgrade but a strategic move to improve product reliability and operational efficiency.

As the industry progresses towards more complex and miniaturized electronics, the role of selective soldering becomes increasingly significant. Manufacturers investing in selective wave soldering machines today are setting the foundation for future success, ready to meet the demands of next-generation electronic products.
